Lead Time: 4-6 Weeks

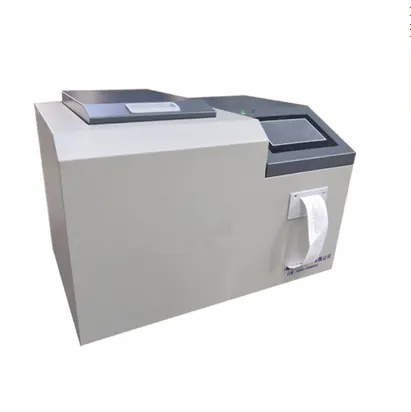

High Precision Microcomputer Automatic Oxygen Bomb Calorimeter
- Oxygen Bomb Calorimeter 300ml
I.Overview
– This instrument is used to measure the calorific value of solid, liquid and other combustible materials (coal, petroleum food, wood, biomass).
– The instrument is a new type of energy-saving analysis instrument developed by our company.
The calculation program carefully compiled improves the measurement accuracy greatly.
The measurement process is automatically controlled to reduce human error. Print cartridge, dry base high position
The results are clear and clear.
II.Technical features
1. It has the advantages of simple structure, reliable performance and strong anti-interference ability.
2. The test steps such as flushing, discharging, water level setting, mixing, ignition, temperature recovery, correction,
calculation and printing are completed automatically to avoid human error and improve the accuracy and precision.
3. The unique calibration technology makes the requirements of the instrument to the environment relatively relaxed.
The accuracy of the test is improved while the stability of the long-term operation is ensured.
– Oxygen Bomb Calorimeter 300ml
IV.Technical index
Heat capacity: About 10500 J / K
Oxygen bomb capacity: 300ml
Oxygen charging pressure: 2.8 ~ 3.2 MPa
Pressure resistance: water pressure 20MPa
Weight: 2.5 kg
Overall dimension: 650 * 450 * 500 mm
Temperature range: 0 ~ 40 ℃
Response time: < 4 S
Resolution: 0.0001 ℃
Linearity: < 0.08% per 5 ℃ temperature rise range
Temperature measurement error: ± 0.003 ℃ for every 5 ℃ temperature rise range
Power supply voltage: AC220V ± 10%
Humidity: ≤ 80%
Power: 30W
Ignition voltage: AC24 V
Ignition time: 5S
